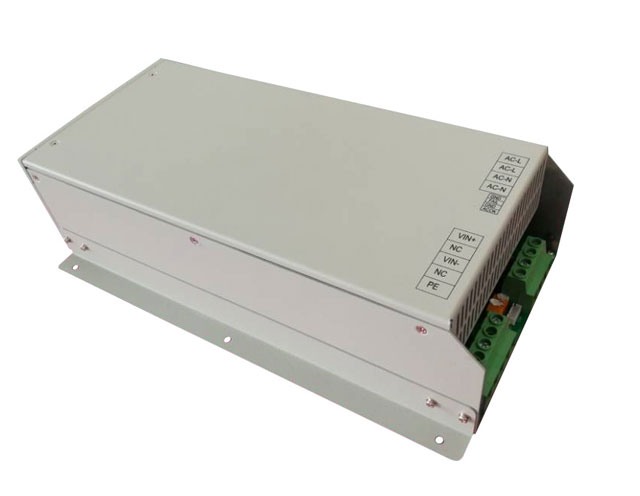

S2KW-1000S220 DC-AC high voltage inverter

Name:S2KW-1000S220 DC-AC high voltage inverter

Details

The power supply is a DC-AC high-voltage and high-power inverter with an ultra-wide input voltage range of 1000-2200 VDC, ultra-high conversion efficiency of more than 90%, pure sine wave output of 220Vac/9.1A, distortion rate of less than 5%, rated power output of 2000W, with various loads and internal fan heat dissipation. The power supply has input over voltage protection, under voltage protection, reverse connection protection, output under voltage protection, output over current protection, short circuit protection and other functions, the design meets the requirements of safety standards

Input characteristic

1000-2200VDC

Output: 220VAC 50Hz 2000W (with various loads)

Working environment: -40 ~ +75℃

Efficiency :≥90%

Input/output isolation Voltage: 4000VDC/5mA/60S

Input ground isolation voltage :6000VDC/5mA/60S

Total mass: 7.5KG

Dimensions :360*184*96MM

MTBF≥ 150,000 hours (25℃, full load, experimentally verified value);
